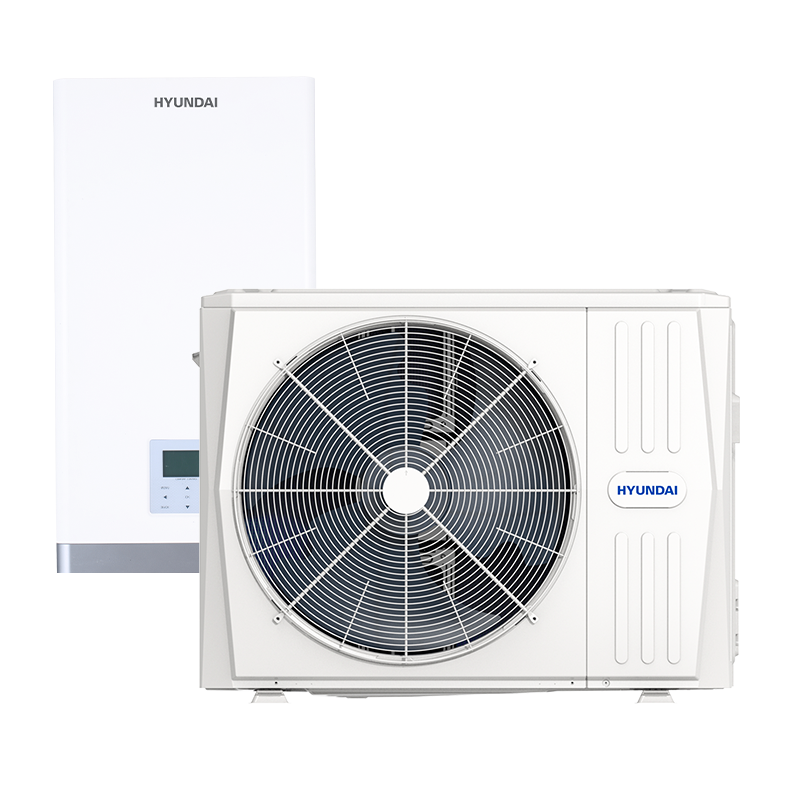

HYUNDAI Heat Pump Split Type

HYUNDAI Heat Pump Split Type is transfers thermal energy to the outside air through the refrigerant circuit indoor unit hydronic. Split Type is a complete solution to maintain a comfortable temperature conditions in a residential area. Energy is used for heating outdoor air and / or air condtioning, as well as for water heating domestic hot water.

Basic features
Environment Friendly
All DC Inverter
Comfort and Health
High Efficiency
Multiple Functions
Perfect Match
Smart Control

Specifications

CAPACITY 220-240V, 50Hz 380-415V, 50Hz
4kW TSCO048CBW1A / TSCI048CBW1A –
6kW TSCO068CBW1A / TSCI068CBW1A –
8kW TSCO088CBW1A / TSCI088CBW1A –
10kW TSCO108CBW1A / TSCI108CBW1A –
12kW TSCO128CBW1A / TSCI128CBW1A TSCO12ACBW1A / TSCI12ACBW1A
14kW TSCO148CBW1A / TSCI148CBW1A TSCO14ACBW1A / TSCI14ACBW1A
16kW TSCO168CBW1A / TSCI168CBW1A TSCO16ACBW1A / TSCI16ACBW1A
MODEL TSCO048CBW1A /TSCI048CBW1A TSCO068CBW1A /TSCI068CBW1A TSCO088CBW1A /TSCI088CBW1A TSCO108CBW1A /TSCI108CBW1A TSCO128CBW1A /TSCI128CBW1A TSCO148CBW1A /TSCI148CBW1A TSCO168CBW1A /TSCI168CBW1A TSCO12ACBW1A /TSCI12ACBW1A TSCO14ACBW1A /TSCI14ACBW1A TSCO16ACBW1A /TSCI16ACBW1A
Capacity
Capacity Heating
(A7/W35)		 kW 4.25 6.20 8.30 10.00 12.10 14.50 16.00 12.10 14.50 16.00
Cooling
(A35/W18)		 kW 4.50 6.55 8.40 10.00 12.00 13.50 14.20 12.00 13.50 14.20
Electric Data
Power Supply V/Ph/Hz 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 380-415/3/50 380-415/3/50 380-415/3/50
Refrigerant R32 R32 R32 R32 R32 R32 R32 R32 R32 R32

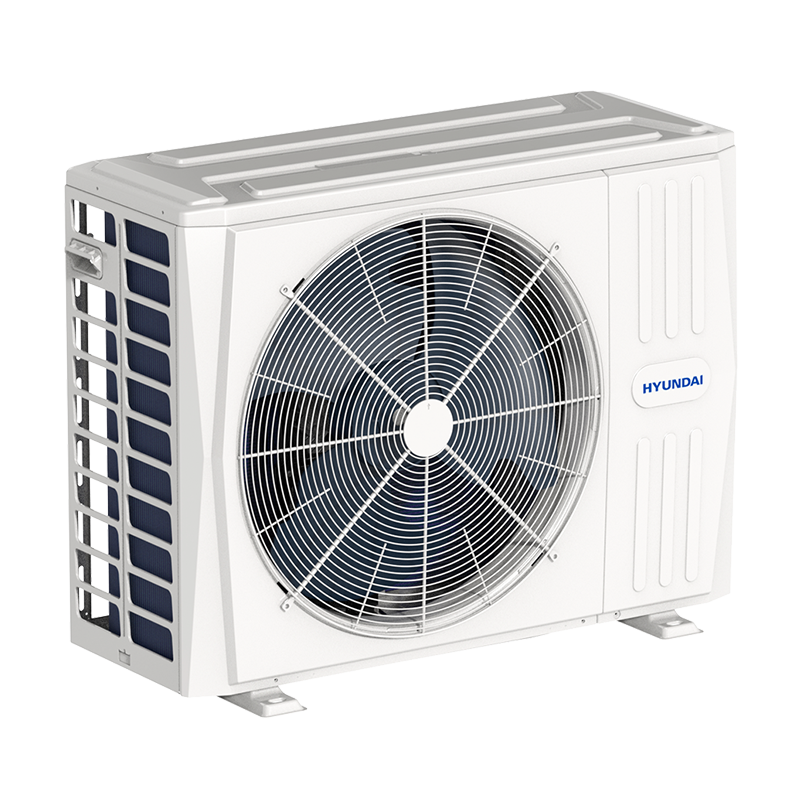

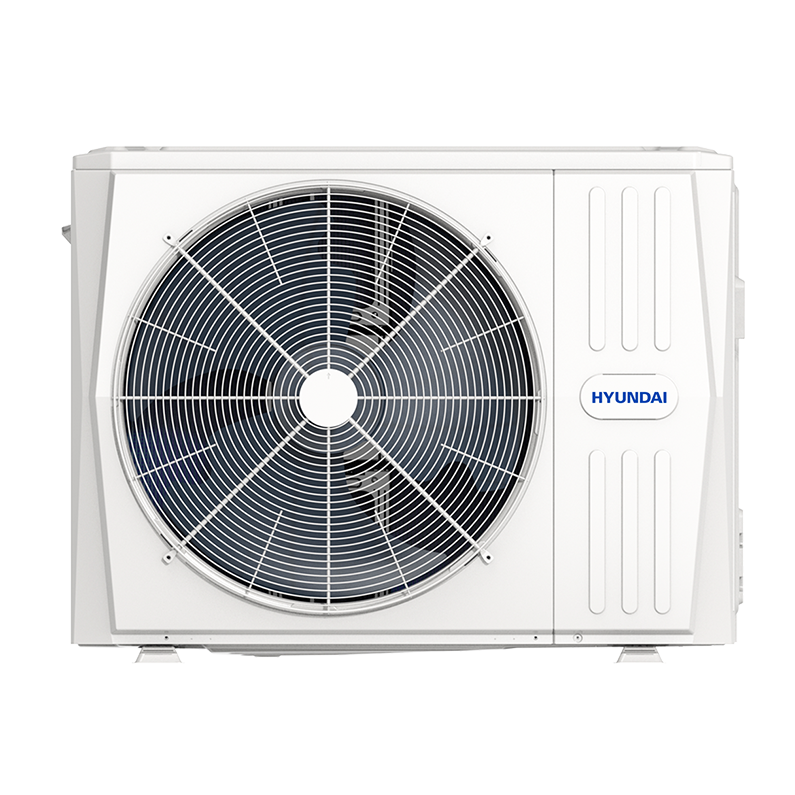

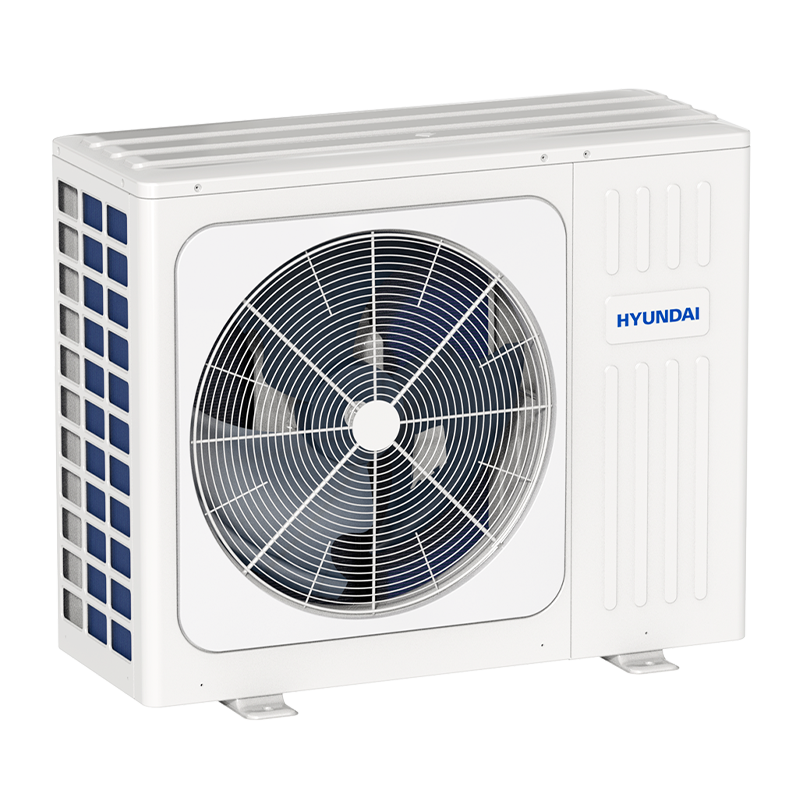

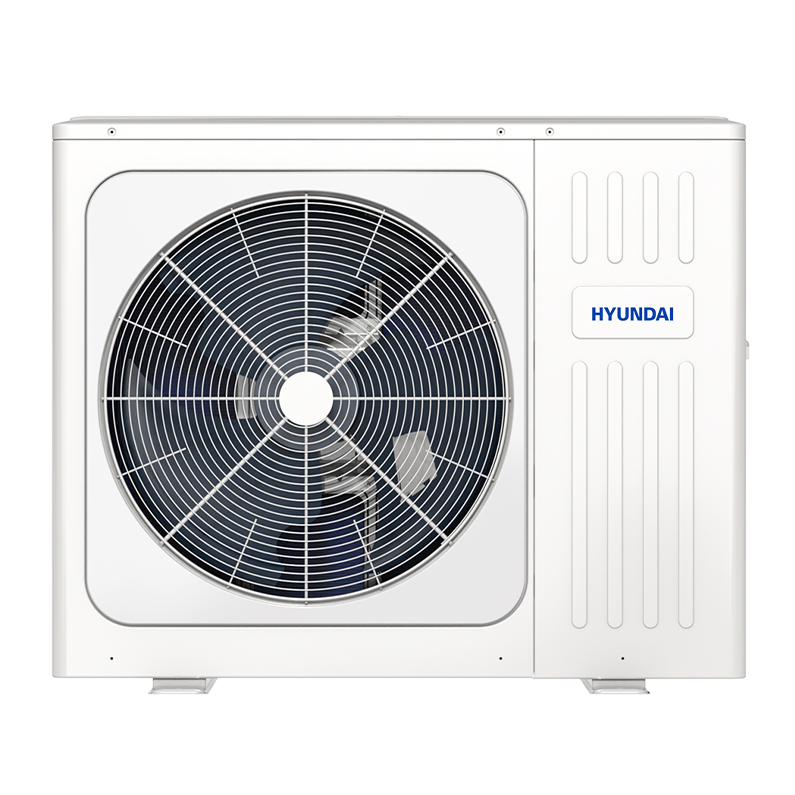

Outdoor Unit
Outdoor air temperature range Heating ℃ -25 ~ 35 -25 ~ 35 -25 ~ 35 -25 ~ 35 -25 ~ 35 -25 ~ 35 -25 ~ 35 -25 ~ 35 -25 ~ 35 -25 ~ 35
Cooling ℃ -5 ~ 43 -5 ~ 43 -5 ~ 43 -5 ~ 43 -5 ~ 43 -5 ~ 43 -5 ~ 43 -5 ~ 43 -5 ~ 43 -5 ~ 43
Efficiency SCOP Class 35℃ A+++ A+++ A+++ A+++ A+++ A+++ A+++ A+++ A+++ A+++
SCOP Class 55℃ A++ A++ A++ A++ A++ A++ A++ A++ A++ A++
Sound Power Level dB(A) 56 58 59 60 64 65 68 64 65 68
Pressure Level dB(A) 44 45 46 49 50 51 54 50 51 55
Dimensions W x H x D mm 1008 x 712 x 426 1008 x 712 x 426 1118 x 865 x 523 1118 x 865 x 523 1118 x 865 x 523 1118 x 865 x 523 1118 x 865 x 523 1118 x 865 x 523 1118 x 865 x 523 1118 x 865 x 523
Net/Gross weight kg 58 / 63.5 58 / 63.5 75 / 89 75 / 89 97 / 110.5 97 / 110.5 97 / 110.5 112 / 125.5 112 / 125.5 112 / 125.5

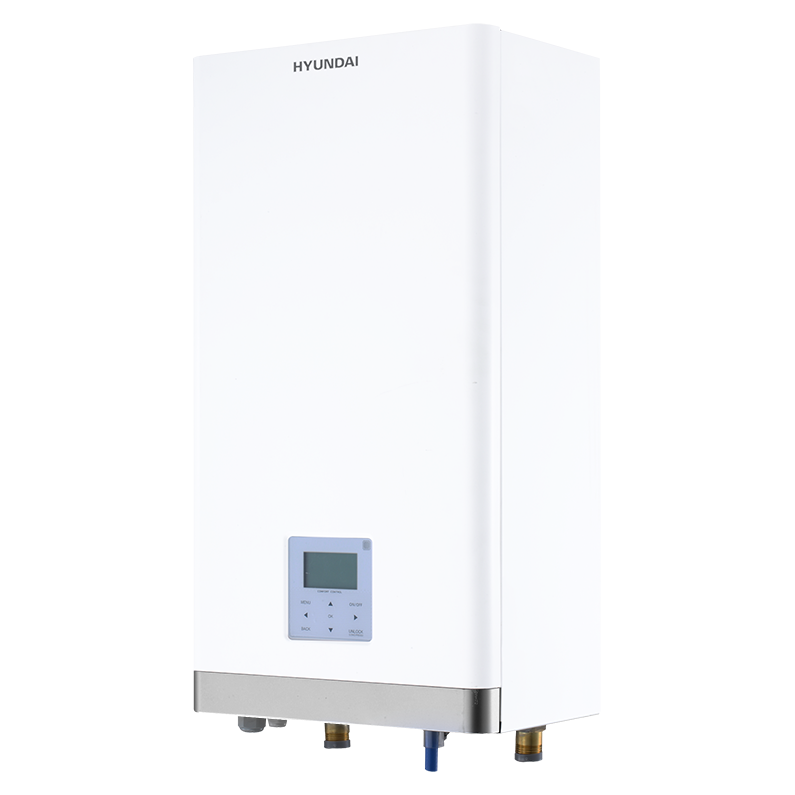

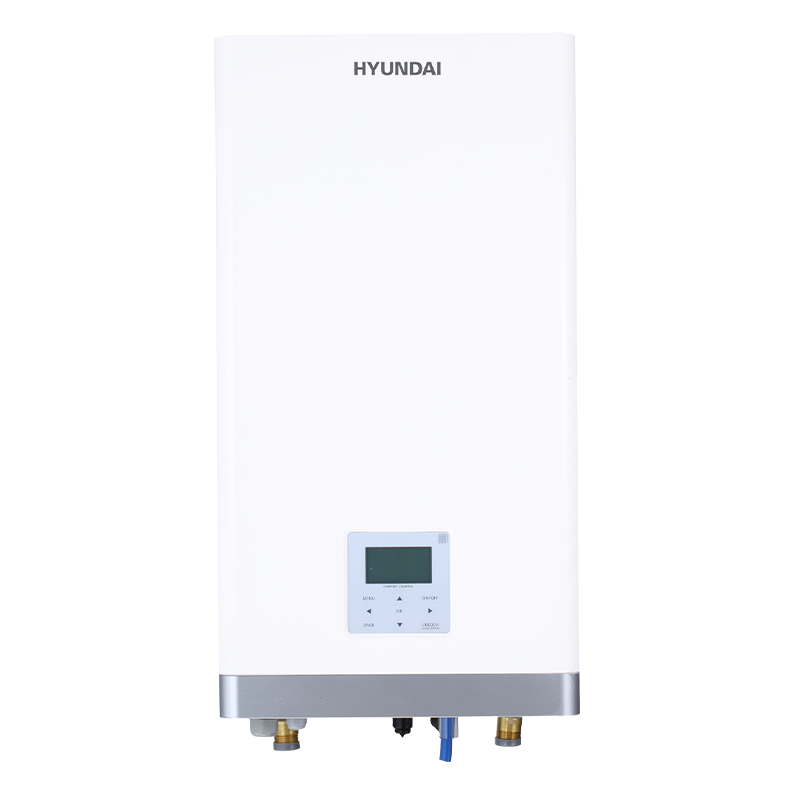

Indoor Unit
Water setting temperature range Heating ℃ 25 ~ 65 25 ~ 65 25 ~ 65 25 ~ 65 25 ~ 65 25 ~ 65 25 ~ 65 25 ~ 65 25 ~ 65 25 ~ 65
Cooling ℃ 5 ~ 25 5 ~ 25 5 ~ 25 5 ~ 25 5 ~ 25 5 ~ 25 5 ~ 25 5 ~ 25 5 ~ 25 5 ~ 25
Sound Power Level dB(A) 38 38 42 42 43 43 43 43 43 43
Dimensions W x H x D mm 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270 420 x 790 x 270
Net/Gross weight kg 37 / 43 37 / 43 37 / 43 37 / 43 39 / 45 39 / 45 39 / 45 39 / 45 39 / 45 39 / 45
